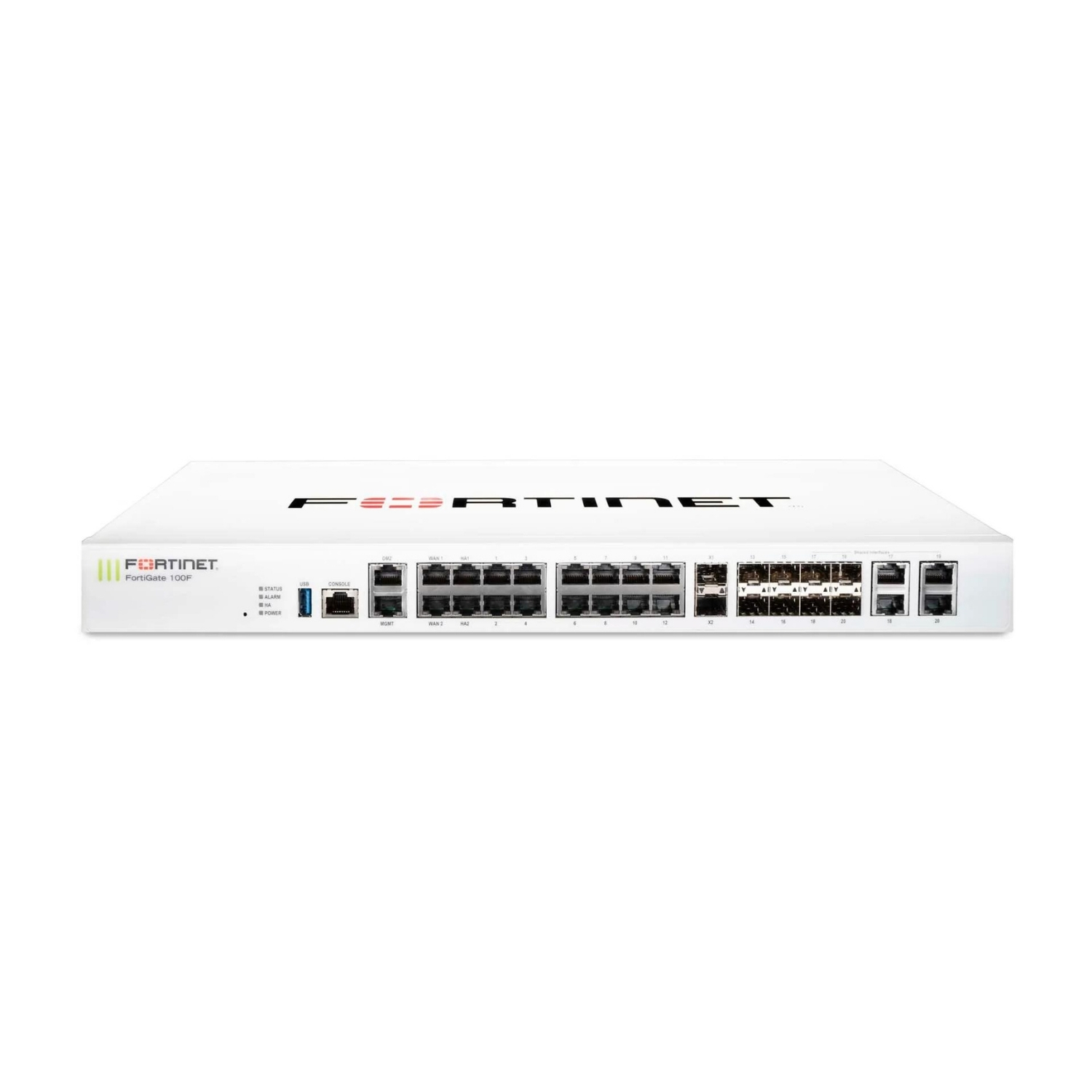

Fortinet FortiGate 100F

Thread Protection Throughput

1 Gbps

SSL Inspection Throughput

1 Gbps

VPN Performance

11.5 Gbps

Concurrent Sessions (TCP)

1,500,000

NGFW Throughput

1.6 Gbps

Price range: £2,341.72 through £10,800.00

Bundles

Clear

30-Min Free Consultation

Book Now

Overview:

The FortiGate 100F series integrates next-generation firewall (NGFW) and SD-WAN functionalities for mid-sized to large enterprises with distributed locations. Powered by a purpose-built Secure SD-WAN ASIC, it delivers superior performance for mission-critical applications along with top-tier security.

Security:

Detects thousands of applications within network traffic, allowing for deep inspection and detailed policy enforcement.
Protects against malware, exploits, and harmful websites, whether the traffic is encrypted or unencrypted.
Utilizes AI-driven threat intelligence from FortiGuard Labs to prevent and detect both known and unknown attacks.

Performance:

Uses purpose-built security processor (SPU) technology to deliver the best threat protection with ultra-low latency.
Offers industry-leading performance for SSL-encrypted traffic protection.

Certification:

Independently verified for exceptional security effectiveness and performance.
Earned top certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives.

Networking:

Features best-in-class SD-WAN for application steering, optimizing WAN path control for a high-quality user experience.
Provides advanced networking features and scalable IPsec VPN capabilities, integrating networking and security.

Management:

Offers an easy-to-use management console that enhances network automation and visibility.
Supports Zero Touch Integration with the Security Fabric’s Single Pane of Glass Management for streamlined control.
Includes predefined compliance checklists to review deployment and suggest security best practices.

Security Fabric:

Enables integration with Fortinet and Fabric-ready partner products for enhanced visibility, end-to-end detection, threat intelligence sharing, and automated remediation.
Automatically generates network topology visualizations, detecting IoT devices and offering full visibility into Fortinet and partner products.

Firewall	IPS	NGFW	Threat Protection	Interfaces
20 Gbps	2.6 Gbps	1.6 Gbps	1 Gbps	Multiple GE RJ45, GE SFP and 10GE SFP+ slots

Pricing Notes:

All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
Hardware plus ASE FortiCare and FortiGuard 360 Protection Hardware unit, 24×7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 360 Services Bundle (SD-WAN Orchestrator, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Controller VPN, FortiManager Cloud, FortiAnalyzer Cloud, Fortinet SOCaaS, IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security and FortiConverter Service) plus term of contract
Hardware plus 24×7 FortiCare and FortiGuard Enterprise Protection Hardware Unit, 24×7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract
Hardware plus 24×7 FortiCare and FortiGuard Unified Threat Protection (UTP) Hardware Unit, 24×7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
360 Protection (SD-WAN Orchestrator, SD-WAN Cloud Monitoring, FMG/FAZ Cloud, IPAM, IPS, AMP, App Ctrl, Web & Video Filtering, AS, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and ASE FortiCare) 24×7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 360 Services Bundle (SD-WAN Orchestrator, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Controller VPN, FortiManager Cloud, FortiAnalyzer Cloud, Fortinet SOCaaS, IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security and FortiConverter Service)
Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and 24×7 FortiCare) 24×7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and 24×7 FortiCare) 24×7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and 24×7 FortiCare) 24×7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
24×7 FortiCare Contract 24×7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
ASE FortiCare (24×7 plus Advanced Services Ticket Handling) 24×7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control.
Prices are for one year of Premium RMA support. Usual discounts can be applied.
Annual contracts only. No multi-year SKUs are available for these services.
Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
Pricing and product availability subject to change without notice.

	FORTIGATE 100F	FORTIGATE 101F
Hardware Specifications
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports *	4
USB Port	1
Console Port	1
Internal Storage	—	1x 480 GB SSD
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput²	2.6 Gbps
NGFW Throughput^{2, 4}	1.6 Gbps
Threat Protection Throughput^{2, 5}	1 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets)	5 μs
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)¹	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	750 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS) ³	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)³	1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)³	135,000
Application Control Throughput (HTTP 64K) ²	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Form Factor	Rack Mount, 1 RU
Weight	7.25 lbs (3.29 kg)	7.56 lbs (3.43 kg)
Environment
Power Required	100–240V AC, 60–50 Hz
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.1 W / 38.7 W	35.3 W / 39.1 W
Heat Dissipation	119.77 BTU/h	121.13 BTU/h
Environment
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

* Copper SFP module is not supported. Note: All performance values are “up to” and vary depending on system configuration.

IPsec VPN performance test uses AES256-SHA256.

IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

NGFW performance is measured with Firewall, IPS and Application Control enabled.

Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.

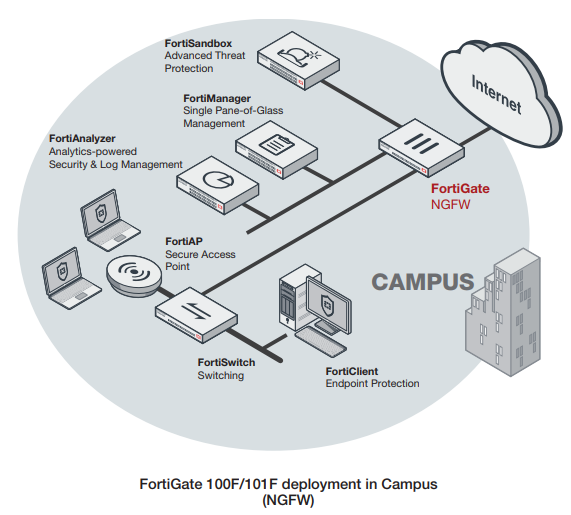

Next Generation Firewall (NGFW)

Reduce complexity by combining threat protection security capabilities into single high-performance network security appliance
Identify and stop threats with powerful intrusion prevention beyond port and protocol that examines the actual applications in your network traffic
Delivers industry’s highest SSL inspection performance using industry-mandated ciphers while maximizing ROI
Proactively blocks newly discovered sophisticated attacks in real-time with advanced threat protection

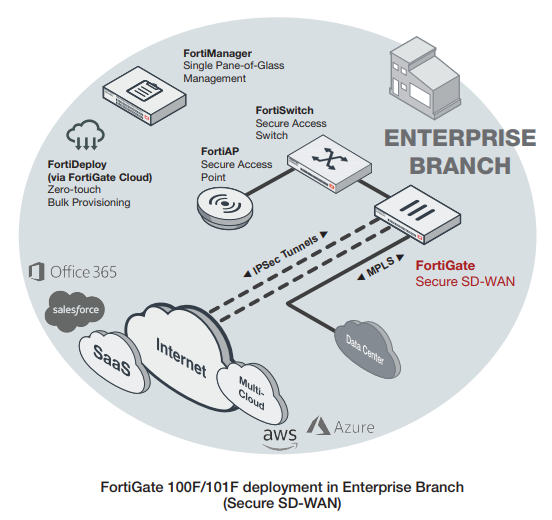

Secure SD-WAN

Secure direct Internet access for Cloud applications for improved latency and reduce WAN cost spending
High-performance and cost-effective threat protection capabilities
WAN Path Controller and Link Health Monitoring for better application performance
Security Processor powered industry’s best IPsec VPN and SSL Inspection performance
Simplified Management and Zero-Touch deployment

Dual Power Supplies

Power supply redundancy is essential in the operation of missioncritical networks. The FortiGate 100F Series offers dual built-in non-hot swappable power supplies.
