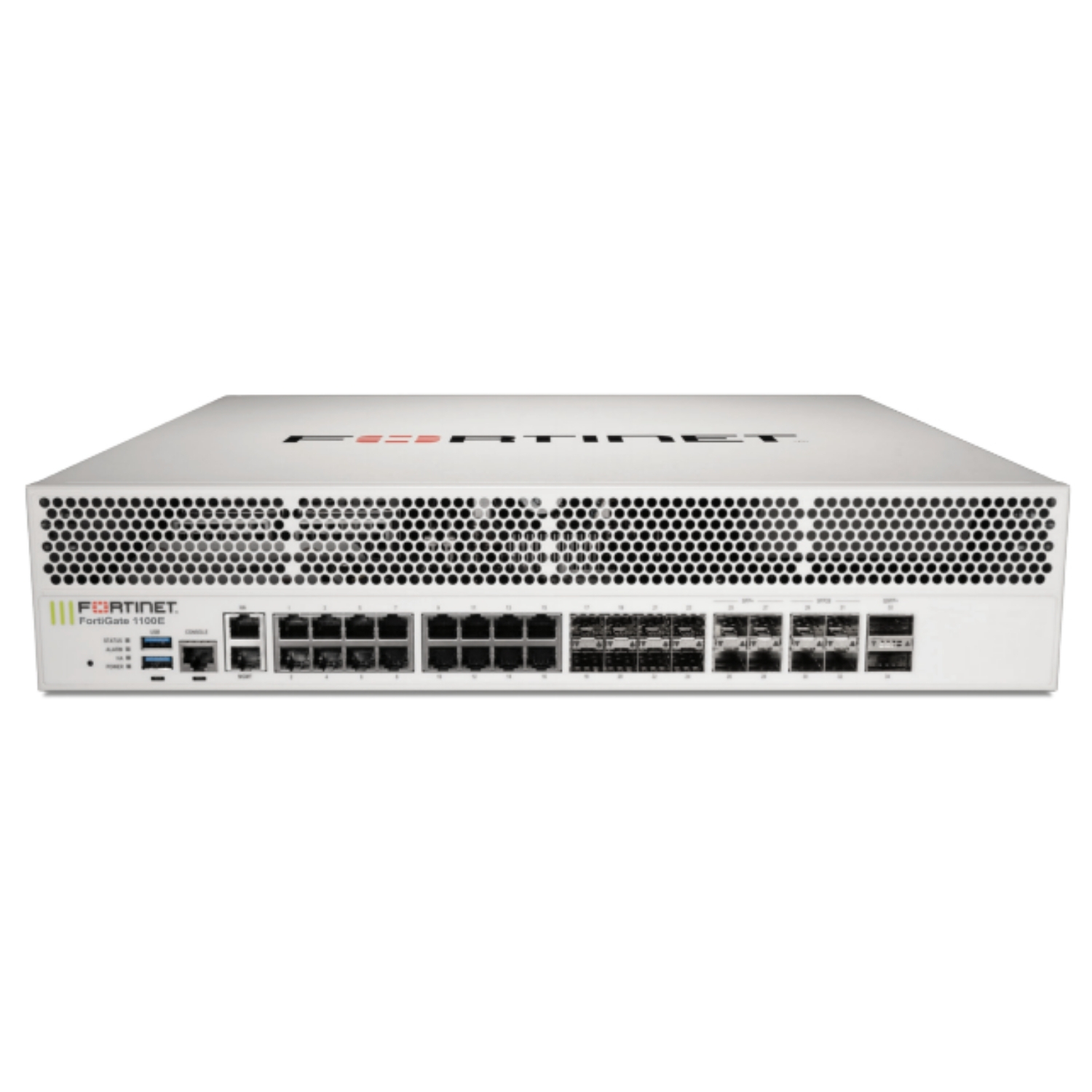

Fortinet FortiGate 1100E
Fortinet FortiGate 1100E

Fortinet FortiGate 1100E

Thread Protection Throughput

7.1 Gbps

SSL Inspection Throughput

10 Gbps

VPN Performance

48 Gbps

Concurrent Sessions (TCP)

8,000,000

NGFW Throughput

9.8 Gbps

Price range: £27,499.00 through £144,490.00

30-Min Free Consultation
Book Now
The FortiGate 1100E series offers exceptional threat protection and SSL inspection, making it ideal for large enterprises and service providers. With versatile deployment options—including the enterprise/cloud edge, data center core, or internal segments—it combines high-speed interfaces, dense port configurations, robust security, and high throughput to keep networks secure and reliably connected. Key Features: Security:
  • Deeply inspects network traffic by identifying thousands of applications for granular policy enforcement.
  • Safeguards against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic.
  • Combines continuous threat intelligence from AI-powered FortiGuard Labs to prevent and detect both known and unknown attacks.
Performance:
  • Leverages purpose-built SPU (Security Processor Unit) technology to deliver best-in-class threat protection with ultra-low latency.
  • Provides exceptional performance for SSL-encrypted traffic, maintaining superior security efficacy.
Certification:
  • Recognized for top-tier security effectiveness and performance through independent testing and validation.
  • Achieved unmatched certifications, including those from NSS Labs.
Networking:
  • Integrates advanced networking capabilities with layer 7 security and virtual domains (VDOMs) to ensure deployment flexibility, multi-tenancy, and efficient resource utilization.
  • Offers a high-density mix of high-speed interfaces, delivering optimal total cost of ownership (TCO) for data center and WAN deployments.
Management:
  • Features an intuitive management console that simplifies network automation and enhances visibility.
  • Provides Zero-Touch Integration with the Security Fabric’s unified management system for streamlined operations.
  • Includes a predefined compliance checklist to analyze deployments and recommend best practices for improving security posture.
Security Fabric:
  • Facilitates broader visibility, end-to-end threat detection, and automated remediation by integrating with Fortinet and Fabric-ready partner solutions.
  • Enhances threat intelligence sharing to strengthen overall security across the network.
FORTIGATE 1100E FORTIGATE 1101E
Interfaces and Modules
Hardware Accelerated 40 GE QSFP+ Slots 2
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots 4
Hardware Accelerated 10 GE SFP+ Slots 4
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated GE RJ45 Ports 16
GE RJ45 Management / HA Ports 2
USB Ports (Client / Server) 1 / 2
Console Port 1
Onboard Storage 0 2x 480 GB SSD
Included Transceivers 2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput 2 12.5 Gbps
NGFW Throughput 2,4 9.8 Gbps
Threat Protection Throughput2,5 7.1 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 80 / 80 / 45 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 80 / 80 / 45 Gbps
Firewall Latency (64 byte, UDP) 3 μs
Firewall Throughput (Packet per Second) 67.5 Mpps
Concurrent Sessions (TCP) 8 Million
New Sessions/Second (TCP) 500,000
Firewall Policies 100,000
IPsec VPN Throughput (512 byte)1 48 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 20,000
Client-to-Gateway IPsec VPN Tunnels 100,000
SSL-VPN Throughput 8.4 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10,000
SSL Inspection Throughput (IPS, avg. HTTPS) 3 10.0 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 6,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 780,000
Application Control Throughput (HTTP 64K)2 26 Gbps
CAPWAP Throughput (HTTP 64K) 43 Gbps
Virtual Domains (Default / Maximum) 10 / 250
Maximum Number of FortiSwitches Supported 128
Maximum Number of FortiAPs (Total / Tunnel) 4,096 / 1,024
Maximum Number of FortiTokens 20,000
Maximum Number of Registered FortiClients 20,000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 3.5 x 17.44 x 17.62
Height x Width x Length (mm) 88.9 x 443 x 447.4
Weight 24.9 lbs (11.3 kg) 25.4 lbs (11.55 kg)
Form Factor Rack Mount, 2 RU
AC Power Supply 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) 217 W / 336 W 222 W / 346 W
Current (Maximum) 6A@120V, 3A@240V
Heat Dissipation 1147 BTU/h 1181 BTU/h
Redundant Power Supplies Yes, Hot swappable
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level 66.7 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Note: All performance values are “up to” and vary depending on system configuration.

  1. . IPsec VPN performance test uses AES256-SHA256.
  2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
  3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
  4. NGFW performance is measured with Firewall, IPS and Application Control enabled.
  5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.

Deployment:

FortiGate 1100E deployment in large campus networks (NGFW, Intent-based Segmentation)



FortiGate 1100E deployment in data center (IPS/NGFW, Intent-based Segmentation)

Next-Generation Firewall (NGFW):

  • Simplifies network security by consolidating advanced threat protection capabilities into a single, high-performance appliance.
  • Detects and blocks threats with robust intrusion prevention that examines applications beyond ports and protocols.
  • Achieves industry-leading SSL inspection performance using standard ciphers, ensuring maximum return on investment (ROI).
  • Proactively mitigates sophisticated, emerging threats in real-time with advanced protection technologies.

Segmentation:

  • Intent-Based Segmentation: Establishes a secure framework that reduces risk, cost, and complexity.
  • Integrates seamlessly with Security Fabric to incorporate third-party solutions and continuous trust assessments, effectively countering sophisticated attacks.
  • Protects critical business applications and ensures compliance without requiring network redesigns.

Intrusion Prevention System (IPS):

  • Provides cost-effective protection for hard-to-patch systems like IoT, ICS, and SCADA by mitigating unpatched vulnerabilities.
  • Secures sensitive data to meet regulatory standards such as PCI, HIPAA, PII, and GDPR.
  • Leverages multiple inspection engines, threat intelligence feeds, and real-time advanced protection to defend against unknown threats.
  • Combines industry-best intrusion prevention with high-performance SSL inspection.

Mobile Security for 4G, 5G, and IoT:

  • Offers SGi LAN security using advanced SPU technology to deliver high-performance CGNAT and accelerate IPv4/IPv6 traffic.
  • Provides scalable, high-performing IPsec aggregation and Security Gateway (SecGW) for RAN Access Security.
  • Features a variety of high-speed interfaces to support flexible deployment options.
