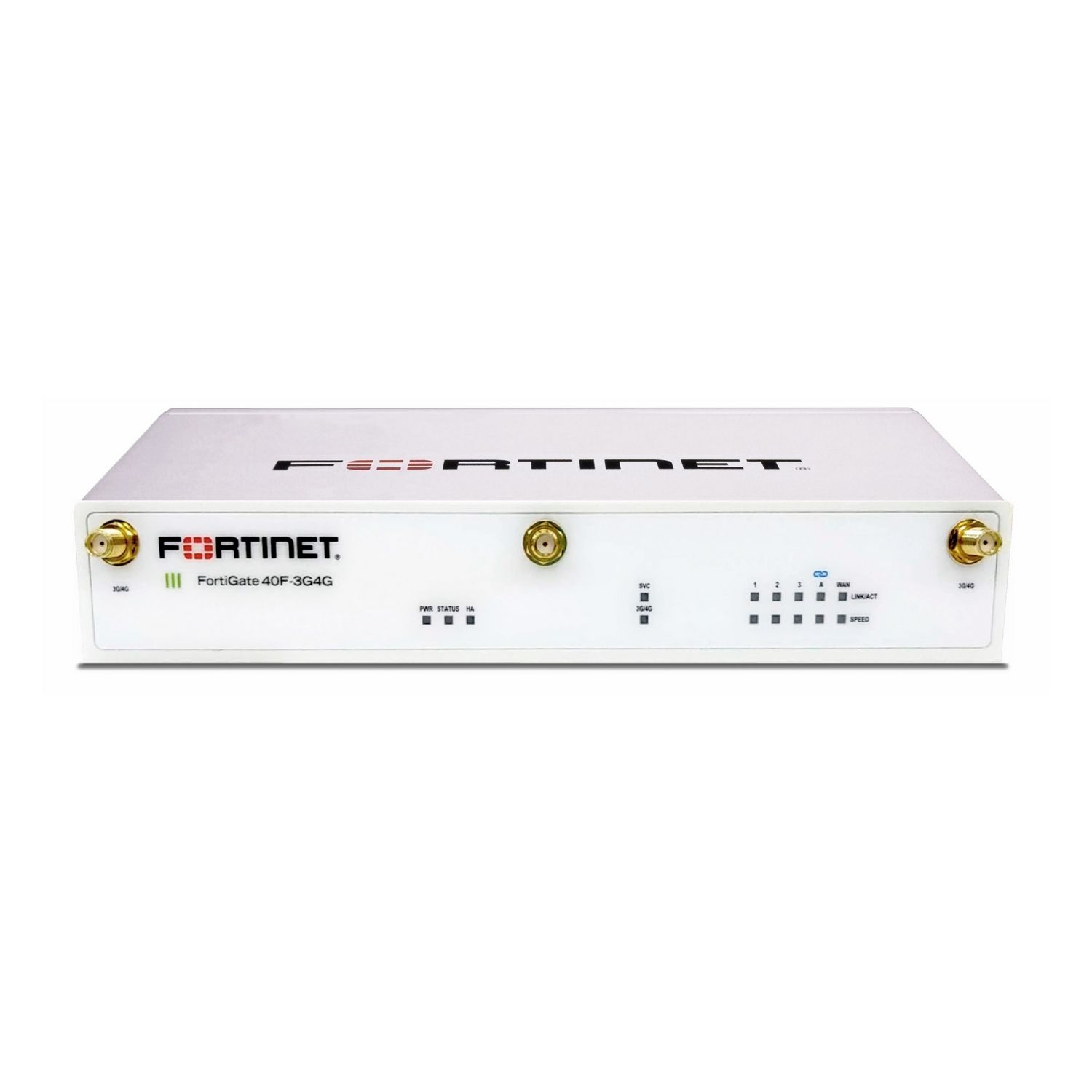

Fortinet FortiGate 40F-3G4G

Fortinet FortiGate 40F-3G4G

Thread Protection Throughput

600 Mbps

SSL Inspection Throughput

310 Mbps

VPN Performance

4.4 Gbps

Concurrent Sessions (TCP)

700,000

NGFW Throughput

800 Mbps

Price range: £828.00 through £3,820.00

30-Min Free Consultation
Book Now

The Fortinet Enterprise Firewall Solution

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
  • Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
  • Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

  • Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides industry-leading performance and protection for SSL encrypted traffic

Certification

  • Independently tested and validated best security effectiveness and performance
  • Received unparalleled third-party certifications from NSS Labs

Networking

  • Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
  • Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

  • Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility.
  • Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
  • Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

  • Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
Firewall IPS NGFW Threat Protection Interfaces
5 Gbps 1 Gbps 800 Mbps 600 Mbps Multiple GE RJ45 | WiFi variants | 3G4G/LTE

Specifications:



FortiGate 40F FortiWifi 40F
Interfaces and Modules
GE RJ45 WAN / DMZ Ports 1
GE RJ45 Internal Ports 3
GE RJ45 FortiLink Ports 1
GE RJ45 PoE/+ Ports –
Wireless Interface – Single Radio (2.4GHz/5GHz)
802.11 /a/b/g/n/ac-W2
USB Ports 1
Console (RJ45) 1
Onboard Storage –
Included Transceivers –
System Performance — Enterprise Traffic Mix
IPS Throughput 1 Gbps
NGFW Throughput 800 Mbps
Threat Protection Throughput 600 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 5/5/5 Gbps
Firewall Latency (64 byte UDP packets) 2.97 μs
Firewall Throughput (Packets Per Second) 7.5 Mpps
Concurrent Sessions (TCP) 700,000
New Sessions/Second (TCP) 35,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 320
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
Application Control Throughput (HTTP 64K) 990 Mbps
CAPWAP Throughput (HTTP 64K) 3.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 16 / 8
Maximum Number of FortiTokens 500
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.5 x 8.5 x 6.3
Height x Width x Length (mm) 38.5 x 216 x 160
Weight 2.2 lbs (1 kg)
Form Factor Desktop
Input rating 12Vdc, 3A
Power Required Powered by External DC Power Adapter,
100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum) 7.74 W / 9.46 W 14.6 W / 16.6 W
Maximum Current 100V AC / 0.2A, 240V AC / 0.1A
Heat Dissipation 52.55 BTU/hr 56.64 BTU/hr
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Radio Specifications
Multiple (MU) MIMO – 3 x 3
Maximum Wi-Fi Speeds – 1300 Mbps @ 5 GHz,
450 Mbps @ 2.4 GHz
Maximum Tx Power – 20 dBm
Antenna Gain – 3.5 dBi @ 5GHz,
5 dBi @ 2.4 GHz

Hardware:

FortiGate / FortiWifi 40F

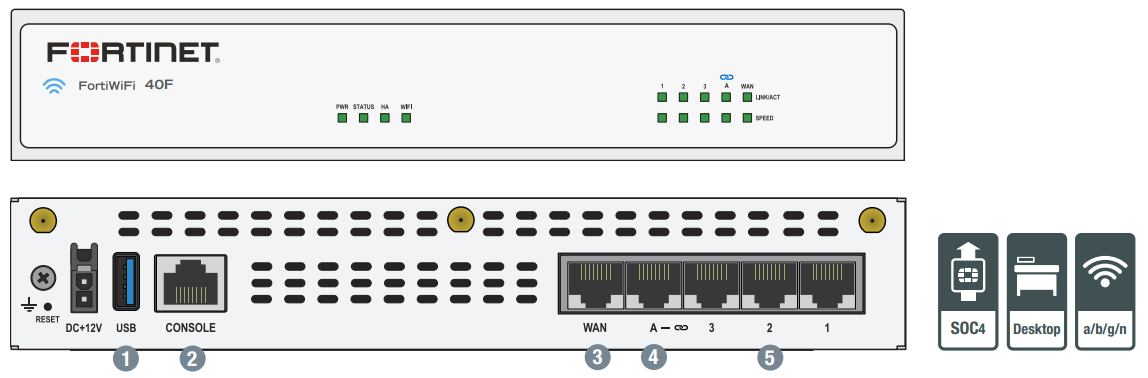

FortiGate 40F Hardware

Interfaces

  1. 1x USB Port
  2. 1x Console Port
  3. 1x GE RJ45 WAN Port
  4. 1x GE RJ45 FortiLink Port
  5. 3x GE RJ45 Ethernet Ports

Powered by Purpose-builtSecure SD-WAN ASIC SOC4

  • Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
  • Delivers industry’s fastest application identification and steering for efficient business operations
  • Accelerates IPsec VPN performance for best user experience on direct internet access
  • Enables the best of breed NGFW Security and Deep SSL Inspection with high performance
  • Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity

3G/4G WAN Connectivity

The FortiGate 40F Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Secure Access Layer

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Deployment:

Deployment

Next Generation Firewall (NGFW)

  • Reduce the complexity and maximize your ROI by integrating threat protection security capabilities into a single high-performance network security appliance, powered by Fortinet’s Security Processing Unit (SPU)
  • Full visibility into users, devices, applications across the entire attack surface and consistent security policy enforcement irrespective of asset location
  • Protect against network exploitable vulnerabilities with industry-validated IPS that offers low latency and optimized network performance
  • Automatically block threats on decrypted traffic using the Industry’s highest SSL inspection performance, including the latest TLS 1.3 standard with mandated ciphers
  • Proactively block newly discovered sophisticated attacks in real-time with AI-powered FortiGuard Labs and advanced threat protection services included in the Fortinet Security Fabric

Secure SD-WAN

  • Consistent business application performance with accurate detection and dynamic WAN path steering on any bestperforming WAN transport
  • Accelerated Multi-cloud access for faster SaaS adoption with cloud-on-ramp
  • Self-healing networks with WAN edge high availability, subsecond traffic switchover-based and real-time bandwidth compute-based traffic steering
  • Automated Overlay tunnels provides encryption and abstracts physical hybrid WAN making it simple to manage
  • Simplified and intuitive workflow with FortiManger for management and zero touch deployment
  • Enhanced analytics both real-time and historical provides visibility into network performance and identify anomalies
  • Strong security posture with next generation firewall and real- time threat protection
