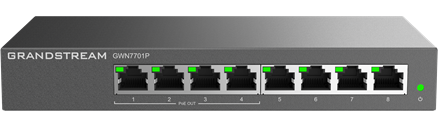

Grandstream GWN7701P 8-Port Gigabit 4-Port PoE+ Switch

Grandstream GWN7701P 8-Port Gigabit 4-Port PoE+ Switch

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.

£40.00

The Grandstream GWN7701P 8-Port Gigabit 4-Port PoE+ Switch is a compact unmanaged network switch designed to simplify wired and PoE network deployments for small businesses, home offices, retail environments, and surveillance systems. With 8 Gigabit Ethernet ports and 4 PoE+ (IEEE 802.3af/at) ports, it delivers both high-speed data connectivity and power over a single Ethernet cable, reducing installation complexity and cabling costs.

This plug-and-play switch requires no configuration, making it ideal for quick deployment in environments where simplicity and reliability are priorities. It automatically detects connected devices and adjusts network speeds up to Gigabit performance while delivering PoE power to compatible devices such as wireless access points, IP phones, and security cameras.

With a total PoE power budget of up to 60W, the GWN7701P provides efficient power distribution across connected devices while maintaining stable network performance. Its metal housing and fanless design ensure durability and silent operation, making it suitable for office desks, cabinets, and quiet working environments.

  • 8 × Gigabit Ethernet RJ45 ports
  • 4 × PoE+ ports (IEEE 802.3af/at compliant)
  • Plug-and-play unmanaged operation
  • Total PoE power budget up to 60W
  • Up to 30W per PoE port
  • Gigabit non-blocking switching performance
  • Auto MDI/MDIX support on all ports
  • Supports IP phones, Wi-Fi access points, and IP cameras
  • Green Ethernet technology for lower power consumption
  • LED indicators for link, activity, and PoE status
  • Metal housing for durability
  • Fanless silent operation
  • Desktop or wall-mount installation support

Interfaces

  • 8 × 10/100/1000 Mbps Gigabit Ethernet ports
  • 4 × PoE+ output ports (Ports 1–4 typically)
  • Auto-negotiation and Auto MDI/MDIX support

PoE Specifications

  • IEEE 802.3af/802.3at compliant PoE+
  • Total PoE power budget: 60W
  • Max 30W per PoE port
  • Intelligent power allocation and overload protection (grandstream.com)

Switching Performance

  • Switching Capacity: 16Gbps
  • Forwarding Rate: ~11.9 Mpps
  • MAC Address Table: 4K entries
  • Store-and-forward architecture
  • Jumbo frame support up to 9KB (grandstream.com)

Features

  • Unmanaged plug-and-play operation
  • QoS support for traffic prioritisation
  • Broadcast / multicast / unicast storm control
  • Energy-efficient Ethernet (EEE) support
  • Auto speed detection per port

Power

  • External power adapter
  • AC input: 100–240V
  • Total system power depends on PoE load

Physical

  • Metal desktop/wall-mount chassis
  • Fanless silent design
  • Compact form factor for small installations
  • Grandstream GWN7701P Switch
  • Power Adapter
  • Quick Installation Guide
  • Warranty Documentation
