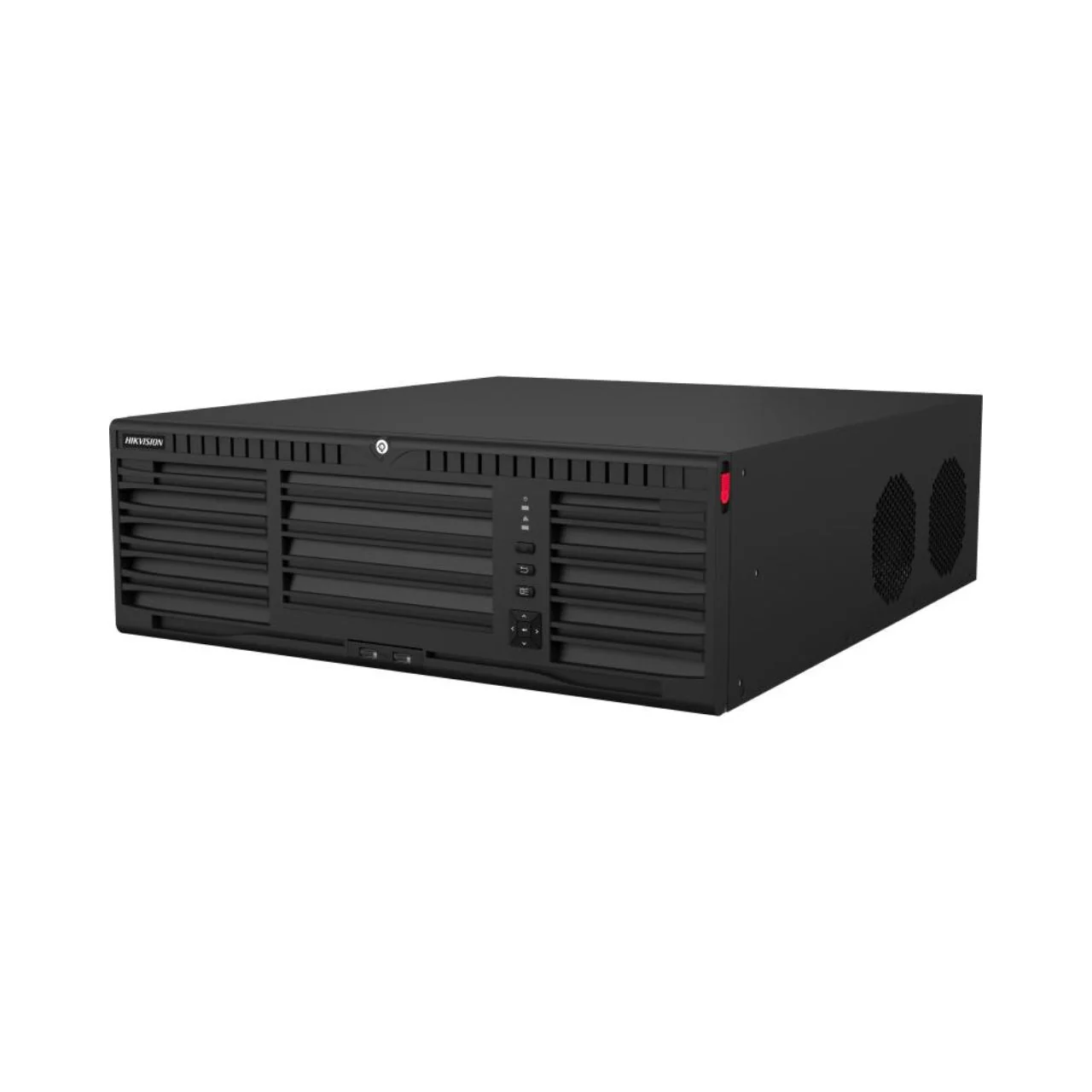

Hikvision 128-Channel Ultra NVR up to 8MP, 16-SATA RAID, 2-HDMI, M-Series

Hikvision 128-Channel Ultra NVR up to 8MP, 16-SATA RAID, 2-HDMI, M-Series

The Hikvision DS-96128NI-M16/R is a 128-channel enterprise NVR supporting up to 32MP IP cameras, 1024 Mbps bandwidth, RAID-protected storage up to 320TB, redundant power supplies, and advanced video management capabilities for large-scale and mission-critical surveillance deployments.

£2,800.00

The Hikvision DS-96128NI-M16/R is a high-capacity enterprise-class Network Video Recorder built for the largest and most demanding surveillance installations. Supporting up to 128 IP cameras and recording resolutions up to 32MP, this Ultra Series NVR delivers exceptional performance for city surveillance projects, airports, transport networks, data centres, industrial facilities, and large multi-site security deployments. With powerful processing capabilities and ultra-high bandwidth performance, it is designed to manage hundreds of high-definition video streams efficiently and reliably.

Designed for maximum scalability and storage retention, the DS-96128NI-M16/R features support for up to 16 SATA hard drives and advanced RAID configurations to ensure data security and system resilience. The recorder offers multiple video outputs, enterprise-grade storage management, and advanced decoding performance for smooth live viewing and playback. Combined with H.265+ compression, redundant power support, and Hikvision’s professional video management capabilities, it provides a future-proof platform for critical surveillance operations where reliability is paramount.

Ideal For

  • Airports and transport infrastructure
  • Safe city and municipal surveillance projects
  • Enterprise and corporate headquarters
  • Industrial and manufacturing facilities
  • Data centres and critical infrastructure
  • Universities and large educational campuses
  • Multi-site security operations centres

Benefits

  • Supports up to 128 IP cameras from a single recorder
  • Massive storage capacity for long-term video retention
  • Enterprise-grade RAID protection for enhanced data security
  • High bandwidth performance for large-scale deployments
  • Supports ultra-high-resolution cameras up to 32MP
  • Redundant power support for improved system reliability
  • Scalable architecture for future expansion
  • Suitable for mission-critical surveillance environments
  • Model: DS-96128NI-M16/R
  • Channels: 128 IP Channels
  • Incoming Bandwidth: Up to 1024 Mbps
  • Outgoing Bandwidth: Up to 1024 Mbps
  • Maximum Recording Resolution: Up to 32MP
  • Video Compression: H.265+, H.265, H.264+, H.264
  • HDMI Outputs: 2 × HDMI
  • Maximum HDMI Resolution: Up to 8K (7680 × 4320)
  • VGA Outputs: 2 × VGA
  • Storage Bays: 16 × SATA HDD
  • Maximum HDD Capacity: Up to 20TB per HDD
  • Maximum Storage Capacity: Up to 320TB
  • RAID Support: RAID 0, 1, 5, 6, 10
  • Network Interfaces: 2 × RJ45 10/100/1000 Mbps Ethernet
  • USB Ports: Multiple USB 2.0 and USB 3.0 ports
  • Alarm Inputs/Outputs: Supported
  • Audio Input/Output: Supported
  • Two-Way Audio: Supported
  • Redundant Power Supply: Supported
  • Remote Access: Hik-Connect and HikCentral compatible
  • Operating Temperature: -10°C to +55°C
  • Form Factor: 4U Rackmount

Next Day Delivery
For UK orders received before 1pm Monday to Friday, we operate a next business day delivery service, subject to availability. We use next day services from the leading delivery companies.

Specific Time Delivery
If you need an item urgently, or delivered at a specific time, please contact us.

Delivery Methods
We use several leading delivery companies. The majority of our deliveries are made by DPD, including most international orders.

Shipping prices are calculated during the checkout process. We deliver to almost every country. For international delivery services, we use DHL, a high quality, fast delivery service. Prices are provided based on the weight of the order; this is calculated when you reach the checkout.

For full shipping information please visit our shipping page.

Overview

The Hikvision DS-96128NI-M16/R is a high-capacity enterprise-class Network Video Recorder built for the largest and most demanding surveillance installations. Supporting up to 128 IP cameras and recording resolutions up to 32MP, this Ultra Series NVR delivers exceptional performance for city surveillance projects, airports, transport networks, data centres, industrial facilities, and large multi-site security deployments. With powerful processing capabilities and ultra-high bandwidth performance, it is designed to manage hundreds of high-definition video streams efficiently and reliably.

Designed for maximum scalability and storage retention, the DS-96128NI-M16/R features support for up to 16 SATA hard drives and advanced RAID configurations to ensure data security and system resilience. The recorder offers multiple video outputs, enterprise-grade storage management, and advanced decoding performance for smooth live viewing and playback. Combined with H.265+ compression, redundant power support, and Hikvision’s professional video management capabilities, it provides a future-proof platform for critical surveillance operations where reliability is paramount.

Ideal For

  • Airports and transport infrastructure
  • Safe city and municipal surveillance projects
  • Enterprise and corporate headquarters
  • Industrial and manufacturing facilities
  • Data centres and critical infrastructure
  • Universities and large educational campuses
  • Multi-site security operations centres

Benefits

  • Supports up to 128 IP cameras from a single recorder
  • Massive storage capacity for long-term video retention
  • Enterprise-grade RAID protection for enhanced data security
  • High bandwidth performance for large-scale deployments
  • Supports ultra-high-resolution cameras up to 32MP
  • Redundant power support for improved system reliability
  • Scalable architecture for future expansion
  • Suitable for mission-critical surveillance environments
  • 128-channel IP camera support
  • Supports camera resolutions up to 32MP
  • H.265+/H.265/H.264+/H.264 compression
  • Advanced enterprise video management platform
  • RAID 0, 1, 5, 6, 10 support
  • Redundant power supply support
  • Smart playback and video search functions
  • Multiple HDMI and VGA video outputs
  • High-performance video decoding
  • Dual Gigabit Ethernet interfaces
  • ONVIF compatibility
  • Support for up to 16 SATA hard drives
  • Centralised management for large CCTV systems
  • Enterprise-grade storage and recording reliability
  • Model: DS-96128NI-M16/R
  • Channels: 128 IP Channels
  • Incoming Bandwidth: Up to 1024 Mbps
  • Outgoing Bandwidth: Up to 1024 Mbps
  • Maximum Recording Resolution: Up to 32MP
  • Video Compression: H.265+, H.265, H.264+, H.264
  • HDMI Outputs: 2 × HDMI
  • Maximum HDMI Resolution: Up to 8K (7680 × 4320)
  • VGA Outputs: 2 × VGA
  • Storage Bays: 16 × SATA HDD
  • Maximum HDD Capacity: Up to 20TB per HDD
  • Maximum Storage Capacity: Up to 320TB
  • RAID Support: RAID 0, 1, 5, 6, 10
  • Network Interfaces: 2 × RJ45 10/100/1000 Mbps Ethernet
  • USB Ports: Multiple USB 2.0 and USB 3.0 ports
  • Alarm Inputs/Outputs: Supported
  • Audio Input/Output: Supported
  • Two-Way Audio: Supported
  • Redundant Power Supply: Supported
  • Remote Access: Hik-Connect and HikCentral compatible
  • Operating Temperature: -10°C to +55°C
  • Form Factor: 4U Rackmount
