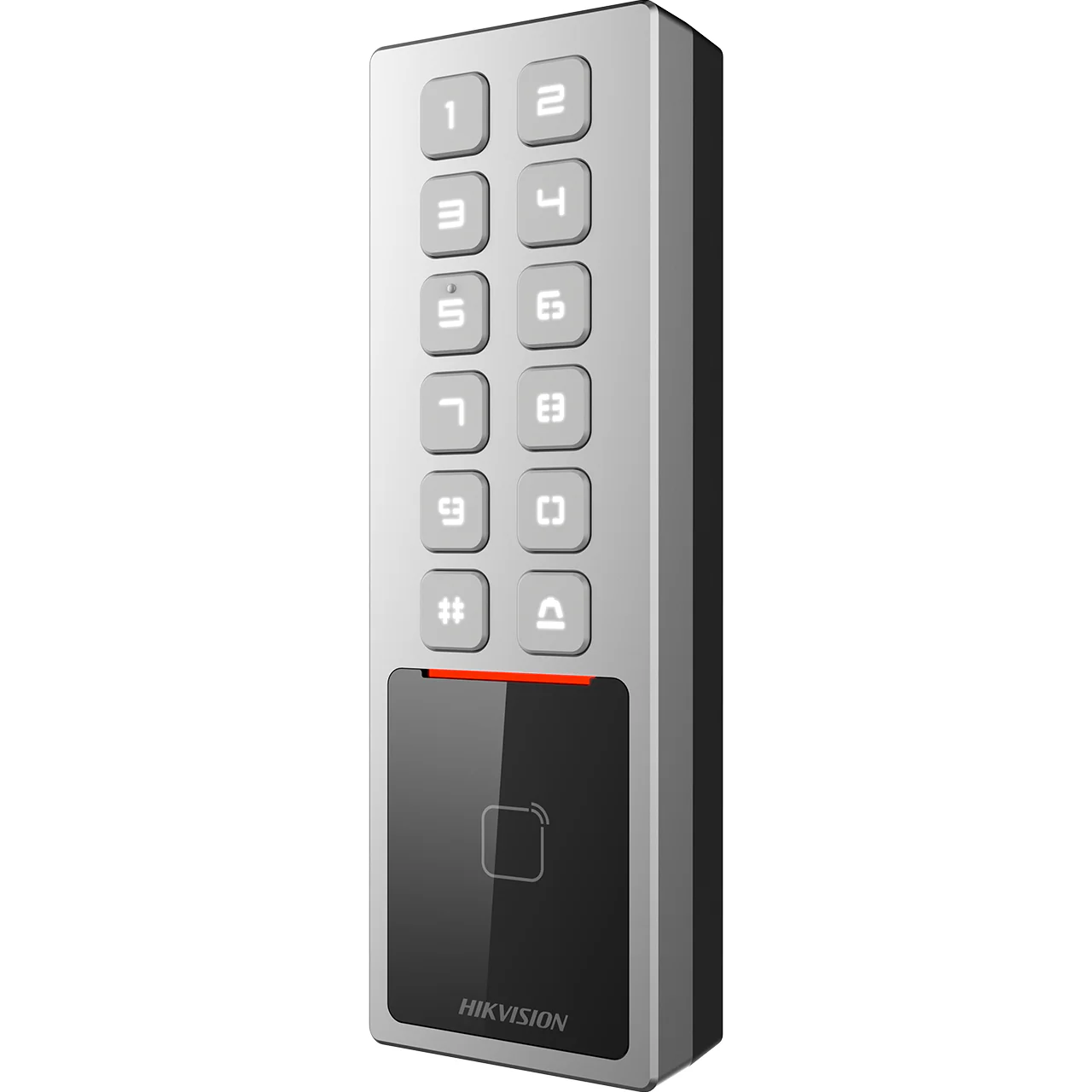

Hikvision Access Control Standalone, Card Reader, Keypad, Bluetooth

Hikvision Access Control Standalone, Card Reader, Keypad, Bluetooth

The Hikvision DS-K1T805MBWX is a standalone IP65-rated access control terminal supporting Mifare cards, PIN codes, and Bluetooth mobile access, with Wi-Fi, Ethernet, and app-based management for flexible and secure door control.

£80.00

The Hikvision DS-K1T805MBWX is a compact standalone access control terminal designed for secure single-door management in residential, commercial, and light industrial environments. It combines Mifare card reading, PIN authentication, and Bluetooth mobile access in one slim metal housing, providing flexible access methods for modern access control systems. Built with both Wi-Fi and Ethernet connectivity, it supports easy setup and remote management through the Hik-Connect app.

Built for indoor and outdoor use, the DS-K1T805MBWX features IP65 weatherproof and IK08 vandal-resistant protection, making it suitable for exposed installations such as gates, entrances, and perimeter doors. With storage for 10,000 cards and 100,000 events, plus support for RS-485, OSDP, and Wiegand, it offers reliable integration into both standalone and controller-based systems.

  • Card type: Mifare (M1)
  • Card capacity: 10,000 cards
  • Event capacity: 100,000 logs
  • Authentication methods: Card / PIN / Bluetooth
  • Card reading distance: 0–4 cm
  • Card reading speed: <1 second
  • Communication: RS-485 / OSDP / Wiegand 26/34
  • Network: 10/100 Mbps Ethernet
  • Wi-Fi: 2.4 GHz (802.11 b/g/n)
  • Bluetooth: Supported
  • Lock control: 1 relay output
  • Exit button: 1 input
  • Door contact: 1 input
  • Alarm inputs: 2
  • Alarm outputs: 1
  • Tamper input: 1
  • Power supply: 12V DC / 1A
  • Power consumption: ≤12W
  • Protection rating: IP65 / IK08
  • Operating system: Linux
  • Operating temperature: -30°C to +60°C
  • Operating humidity: 0% to 90% non-condensing
  • Dimensions: 57.7 × 177 × 34.6 mm

Next Day Delivery
For UK orders received before 1pm Monday to Friday, we operate a next business day delivery service, subject to availability. We use next day services from the leading delivery companies.

Specific Time Delivery
If you need an item urgently, or delivered at a specific time, please contact us.

Delivery Methods
We use several leading delivery companies. The majority of our deliveries are made by DPD, including most international orders.

Shipping prices are calculated during the checkout process. We deliver to almost every country. For international delivery services, we use DHL, a high quality, fast delivery service. Prices are provided based on the weight of the order; this is calculated when you reach the checkout.

For full shipping information please visit our shipping page.

Overview

The Hikvision DS-K1T805MBWX is a compact standalone access control terminal designed for secure single-door management in residential, commercial, and light industrial environments. It combines Mifare card reading, PIN authentication, and Bluetooth mobile access in one slim metal housing, providing flexible access methods for modern access control systems. Built with both Wi-Fi and Ethernet connectivity, it supports easy setup and remote management through the Hik-Connect app.

Built for indoor and outdoor use, the DS-K1T805MBWX features IP65 weatherproof and IK08 vandal-resistant protection, making it suitable for exposed installations such as gates, entrances, and perimeter doors. With storage for 10,000 cards and 100,000 events, plus support for RS-485, OSDP, and Wiegand, it offers reliable integration into both standalone and controller-based systems.

  • standalone access control terminal
  • Mifare card reader
  • Bluetooth mobile credential support
  • PIN code authentication
  • Wi-Fi 2.4GHz support
  • 10/100 Mbps Ethernet connection
  • RS-485 communication
  • OSDP protocol support
  • Wiegand 26/34 support
  • tamper alarm
  • built-in buzzer
  • IP65 weatherproof protection
  • IK08 impact resistance
  • Hik-Connect app support
  • web browser configuration
  • Card type: Mifare (M1)
  • Card capacity: 10,000 cards
  • Event capacity: 100,000 logs
  • Authentication methods: Card / PIN / Bluetooth
  • Card reading distance: 0–4 cm
  • Card reading speed: <1 second
  • Communication: RS-485 / OSDP / Wiegand 26/34
  • Network: 10/100 Mbps Ethernet
  • Wi-Fi: 2.4 GHz (802.11 b/g/n)
  • Bluetooth: Supported
  • Lock control: 1 relay output
  • Exit button: 1 input
  • Door contact: 1 input
  • Alarm inputs: 2
  • Alarm outputs: 1
  • Tamper input: 1
  • Power supply: 12V DC / 1A
  • Power consumption: ≤12W
  • Protection rating: IP65 / IK08
  • Operating system: Linux
  • Operating temperature: -30°C to +60°C
  • Operating humidity: 0% to 90% non-condensing
  • Dimensions: 57.7 × 177 × 34.6 mm
