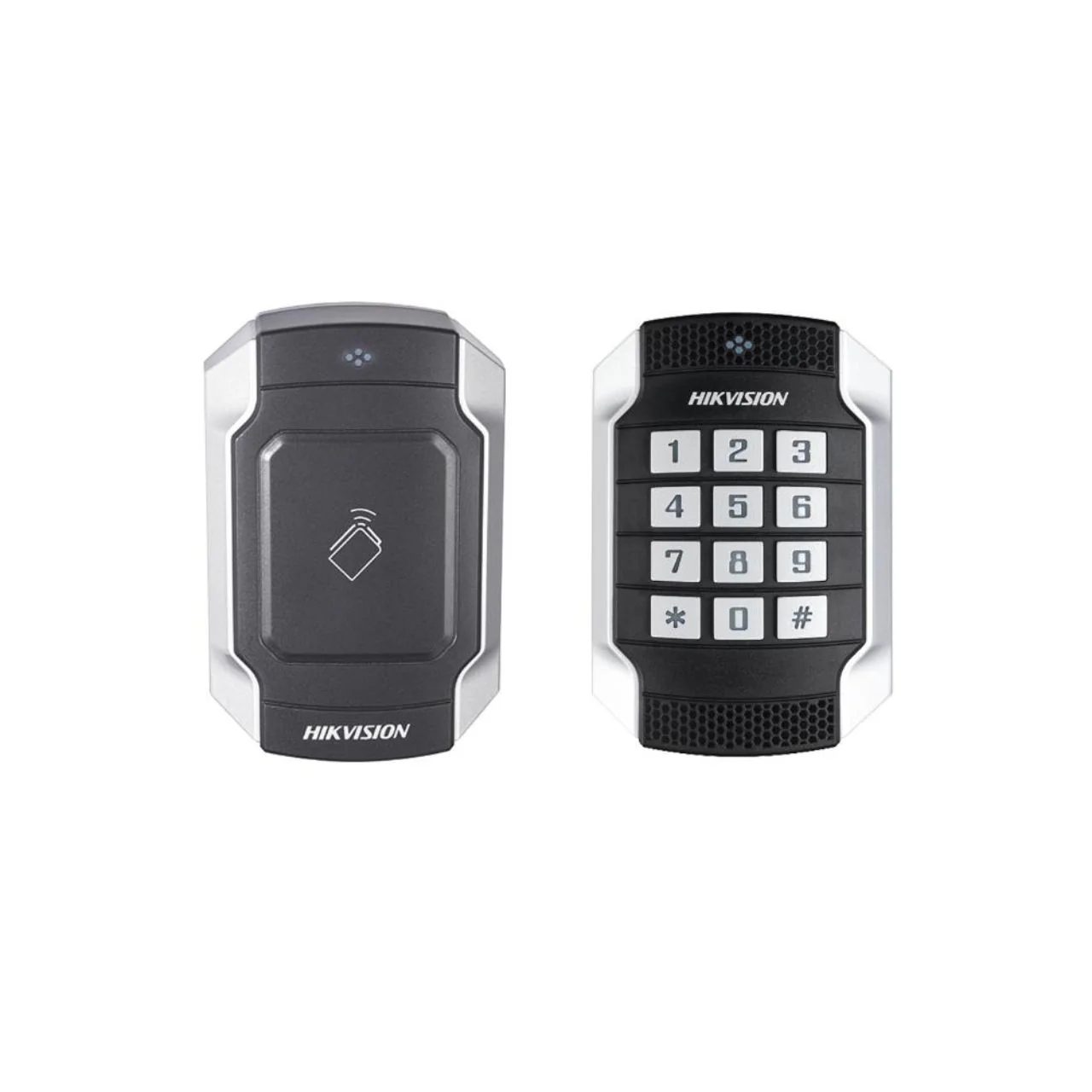

Hikvision Pro Access Control Vandal-proof Card Reader

Hikvision Pro Access Control Vandal-proof Card Reader

The Hikvision DS-K1104M is a vandal-resistant IP65-rated Mifare card reader with metal housing, IK10 protection, RS-485/Wiegand communication, and tamper alarm support, making it ideal for secure indoor and outdoor access control installations.

£80.00

The Hikvision DS-K1104M is a robust Mifare card reader from Hikvision’s Pro Series, designed for secure access control in commercial and industrial environments. Featuring a metal vandal-resistant housing with IK10 impact protection, it is built for high-security doors and exposed installations where durability is essential. It supports 13.56 MHz Mifare cards and integrates with Hikvision controllers via RS-485 and Wiegand protocols, making it suitable for both new and existing access control systems.

Built with a 32-bit processor, the DS-K1104M delivers fast card authentication and stable communication performance. Its IP65 weatherproof rating allows indoor and outdoor installation, while the integrated tamper alarm, buzzer, and LED indicators provide added security and clear user feedback. Designed for mounting on 86 and 120 gang boxes, it offers a professional finish for commercial doors, gates, and restricted access areas.

  • Card type: Mifare 1 card
  • Card frequency: 13.56 MHz
  • Reading distance: ≤50 mm
  • Processor: 32-bit
  • Communication: RS-485 / Wiegand W26/W34
  • Keypad: No
  • Tamper alarm: Supported
  • Buzzer: Supported
  • Indicators: Power indicator / status LED
  • Power supply: 12V DC, ≤500mA
  • Power consumption: ≤2W
  • Protection rating: IP65 / IK10
  • Operating temperature: -20°C to +65°C
  • Operating humidity: 10% to 90% non-condensing
  • Dimensions: 118 × 76 × 23 mm
  • Weight: ≤0.52 kg
  • Installation: 86 & 120 gang box mounting

Next Day Delivery
For UK orders received before 1pm Monday to Friday, we operate a next business day delivery service, subject to availability. We use next day services from the leading delivery companies.

Specific Time Delivery
If you need an item urgently, or delivered at a specific time, please contact us.

Delivery Methods
We use several leading delivery companies. The majority of our deliveries are made by DPD, including most international orders.

Shipping prices are calculated during the checkout process. We deliver to almost every country. For international delivery services, we use DHL, a high quality, fast delivery service. Prices are provided based on the weight of the order; this is calculated when you reach the checkout.

For full shipping information please visit our shipping page.

Overview

The Hikvision DS-K1104M is a robust Mifare card reader from Hikvision’s Pro Series, designed for secure access control in commercial and industrial environments. Featuring a metal vandal-resistant housing with IK10 impact protection, it is built for high-security doors and exposed installations where durability is essential. It supports 13.56 MHz Mifare cards and integrates with Hikvision controllers via RS-485 and Wiegand protocols, making it suitable for both new and existing access control systems.

Built with a 32-bit processor, the DS-K1104M delivers fast card authentication and stable communication performance. Its IP65 weatherproof rating allows indoor and outdoor installation, while the integrated tamper alarm, buzzer, and LED indicators provide added security and clear user feedback. Designed for mounting on 86 and 120 gang boxes, it offers a professional finish for commercial doors, gates, and restricted access areas.

  • Mifare card reader
  • 13.56 MHz card frequency
  • metal vandal-proof housing
  • IK10 impact resistance
  • RS-485 communication
  • Wiegand W26/W34 support
  • built-in tamper alarm
  • built-in buzzer
  • LED status indicators
  • IP65 weatherproof protection
  • 32-bit processor
  • wall-mounted design
  • watchdog self-recovery protection
  • Card type: Mifare 1 card
  • Card frequency: 13.56 MHz
  • Reading distance: ≤50 mm
  • Processor: 32-bit
  • Communication: RS-485 / Wiegand W26/W34
  • Keypad: No
  • Tamper alarm: Supported
  • Buzzer: Supported
  • Indicators: Power indicator / status LED
  • Power supply: 12V DC, ≤500mA
  • Power consumption: ≤2W
  • Protection rating: IP65 / IK10
  • Operating temperature: -20°C to +65°C
  • Operating humidity: 10% to 90% non-condensing
  • Dimensions: 118 × 76 × 23 mm
  • Weight: ≤0.52 kg
  • Installation: 86 & 120 gang box mounting
