The Technomate TM-816 M3 is a professional-grade 16-channel hybrid Superlive DVR built for larger CCTV installations requiring high-capacity recording and advanced surveillance flexibility. Supporting up to 8MP analogue cameras across TVI, AHD, CVI, and CVBS formats, this recorder is ideal for businesses and larger properties needing reliable high-definition security coverage.
Designed for scalability, the TM-816 M3 supports up to 8 additional IP cameras, allowing a maximum of 24 camera channels when combining analogue and IP. Featuring H.265+ video compression, 4K HDMI output, smart motion detection, PTZ control, and dual SATA bays supporting up to 20TB total storage, this DVR delivers long-term recording and efficient video management. With remote access via the Superlive Plus App, it offers users complete control and monitoring from anywhere.
Ideal for
• Large homes and multi-building properties
• Offices and commercial premises
• Retail stores and shopping units
• Warehouses and industrial sites
• Schools and educational facilities
• Hotels and hospitality businesses
• Car parks and perimeter monitoring
• Large-scale analogue CCTV upgrades
Benefits
• Supports 16 analogue cameras for wide-area surveillance coverage
• Expandable with up to 8 IP cameras for hybrid system flexibility
• Records up to 8MP resolution for detailed video footage
• H.265+ compression reduces storage usage and extends recording time
• Dual SATA bays allow up to 20TB storage capacity for long-term retention
• 4K HDMI output provides ultra-clear live viewing and playback
• Smart motion detection improves event recording efficiency
• Remote viewing via mobile app allows monitoring from anywhere
• Suitable for large commercial and residential installations
• Model: TM-816 M3
• Video Channels: 16 Analogue Channels
• IP Camera Support: Up to 8 Channels (expandable up to 16)
• Total Channels: Up to 24 Channels
• Maximum Resolution: Up to 8MP
• Video Input Formats: TVI / AHD / CVI / CVBS
• Video Compression: H.264 / H.265 / H.265+

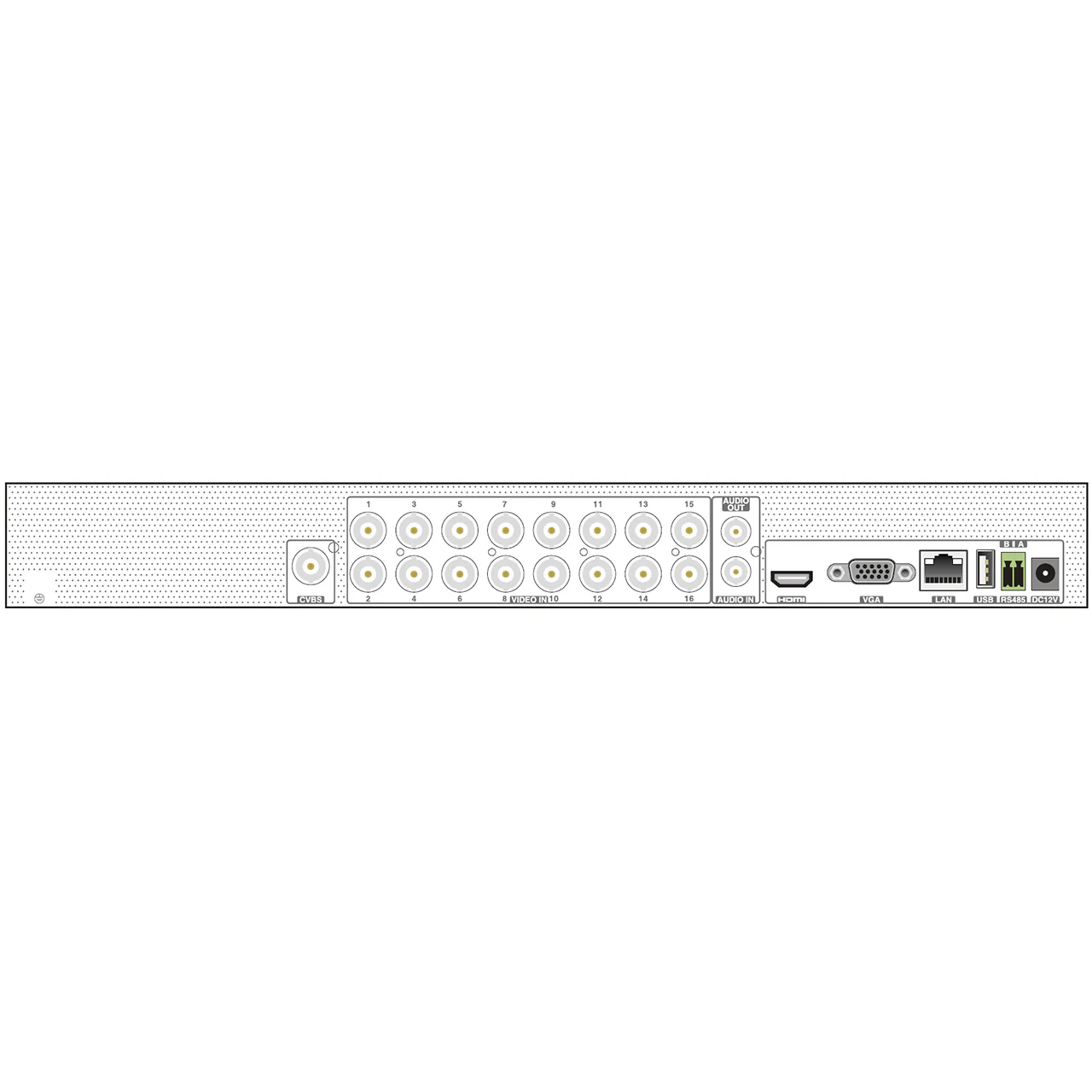

• Video Output: 1 x HDMI (4K), 1 x VGA (1080p), 1 x BNC
• Audio Input: 1 x RCA
• Audio Output: 1 x RCA
• Two-Way Audio: Yes
• Playback: 16 Channels
• Recording Modes: Manual, Timer, Motion Detection, Smart Event
• Smart Motion Detection: 16 Channels
• Perimeter Protection: 1 Channel
• Network Interface: RJ45 Gigabit Ethernet
• Storage: 2 x SATA HDD (Up to 10TB each)
• USB Ports: 2 x USB 2.0
• PTZ Support: RS485
• Mobile Viewing: iOS / Android (Superlive Plus App)
• Power Supply: DC12V / 4A
• Power Consumption: ≤30W (without HDD)
• Dimensions: 380 × 268 × 45mm
• Operating Temperature: -10°C to 50°C
Next Day Delivery
For UK orders received before 1pm Monday to Friday, we operate a next business day delivery service, subject to availability. We use next day services from the leading delivery companies.
Specific Time Delivery
If you need an item urgently, or delivered at a specific time, please contact us.
Delivery Methods
We use several leading delivery companies. The majority of our deliveries are made by DPD, including most international orders.
Shipping prices are calculated during the checkout process. We deliver to almost every country. For international delivery services, we use DHL, a high quality, fast delivery service. Prices are provided based on the weight of the order; this is calculated when you reach the checkout.
For full shipping information please visit our shipping page.
The Technomate TM-816 M3 is a professional-grade 16-channel hybrid Superlive DVR built for larger CCTV installations requiring high-capacity recording and advanced surveillance flexibility. Supporting up to 8MP analogue cameras across TVI, AHD, CVI, and CVBS formats, this recorder is ideal for businesses and larger properties needing reliable high-definition security coverage.
Designed for scalability, the TM-816 M3 supports up to 8 additional IP cameras, allowing a maximum of 24 camera channels when combining analogue and IP. Featuring H.265+ video compression, 4K HDMI output, smart motion detection, PTZ control, and dual SATA bays supporting up to 20TB total storage, this DVR delivers long-term recording and efficient video management. With remote access via the Superlive Plus App, it offers users complete control and monitoring from anywhere.
Ideal for
• Large homes and multi-building properties
• Offices and commercial premises
• Retail stores and shopping units
• Warehouses and industrial sites
• Schools and educational facilities
• Hotels and hospitality businesses
• Car parks and perimeter monitoring
• Large-scale analogue CCTV upgrades
Benefits
• Supports 16 analogue cameras for wide-area surveillance coverage
• Expandable with up to 8 IP cameras for hybrid system flexibility
• Records up to 8MP resolution for detailed video footage
• H.265+ compression reduces storage usage and extends recording time
• Dual SATA bays allow up to 20TB storage capacity for long-term retention
• 4K HDMI output provides ultra-clear live viewing and playback
• Smart motion detection improves event recording efficiency
• Remote viewing via mobile app allows monitoring from anywhere
• Suitable for large commercial and residential installations
• 16-channel hybrid DVR
• Supports TVI, AHD, CVI, and CVBS cameras
• Up to 8MP recording resolution
• Supports up to 8 additional IP cameras
• H.265 / H.265+ video compression
• Smart motion detection
• 4K HDMI video output
• Simultaneous HDMI, VGA, and BNC video outputs
• Smart playback and event search
• PTZ camera control via RS485
• Mobile remote viewing via Superlive Plus
• USB backup support
• Gigabit network connection
• Dual SATA hard drive support
• Model: TM-816 M3
• Video Channels: 16 Analogue Channels
• IP Camera Support: Up to 8 Channels (expandable up to 16)
• Total Channels: Up to 24 Channels
• Maximum Resolution: Up to 8MP
• Video Input Formats: TVI / AHD / CVI / CVBS
• Video Compression: H.264 / H.265 / H.265+
• Video Output: 1 x HDMI (4K), 1 x VGA (1080p), 1 x BNC
• Audio Input: 1 x RCA
• Audio Output: 1 x RCA
• Two-Way Audio: Yes
• Playback: 16 Channels
• Recording Modes: Manual, Timer, Motion Detection, Smart Event
• Smart Motion Detection: 16 Channels
• Perimeter Protection: 1 Channel
• Network Interface: RJ45 Gigabit Ethernet
• Storage: 2 x SATA HDD (Up to 10TB each)
• USB Ports: 2 x USB 2.0
• PTZ Support: RS485
• Mobile Viewing: iOS / Android (Superlive Plus App)
• Power Supply: DC12V / 4A
• Power Consumption: ≤30W (without HDD)
• Dimensions: 380 × 268 × 45mm
• Operating Temperature: -10°C to 50°C
